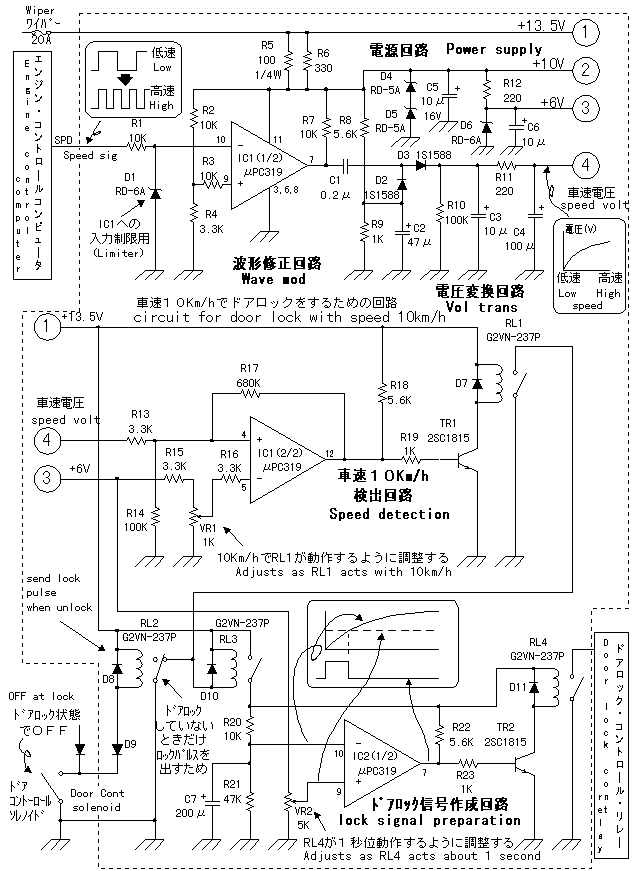

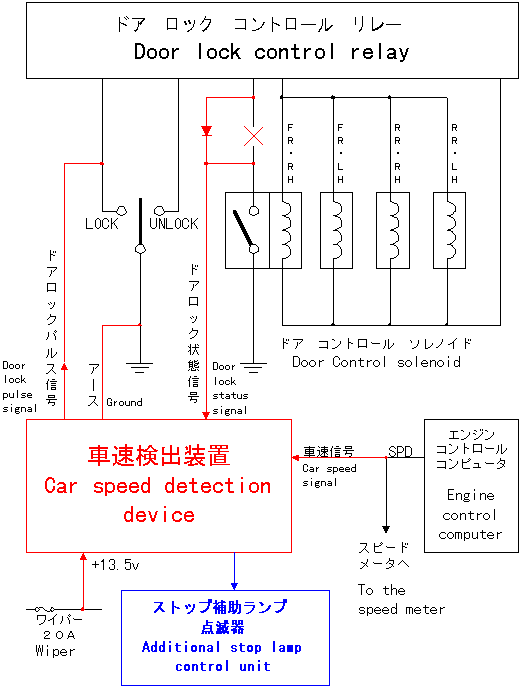

Door lock is easy to forget. Even if it does not lock there is seldom case the door opens during travelling. Even with, when you are getting a child, the child plays and may open the door. Although I think that 'automatic door lock' is to be attached and be standard to the recent car, this circuit locks the door automatically if the car becomes over certain speed. The circuit where I introduce here is considering the car that fit in the following condition. Car that equipped the electromagnet door lock system Car that is able to detect the speed of the car Actually the speed detection of the car is a difficult part. Circuit where I introduce this time is the thing for the car that adopted the computer control method and the speed signal of the car is output as pulse signal( My car is this type ). That it depends on the car, there is the type that moves the needle of the speed meter with the rotation of the magnet which is connected the wire that rotates with the propeller shaft. In the case of such a type, the speed detection adapter needs to be inserted in for the shaft and wire. ( I have not used ) Check well, because the speed detection method differs by the type of the car. Although in the case of the pulse signal type, transmission method of the rotation of the wheel to the meter with the wire is same as the method of the explanation above. In the meter there is the switch that turns on/off with the rotation of the wire instead of the electromagnet. The photo transistor( transistor that detects light ) should be used for the detection of the rotation of wire. The mechanical switch can not do the high speed switching in the long time. It is rectangle wave() to appear as the signal. When it becomes a high speed the interval of rectangle wave becomes short. ( Frequency becomes high ) It is the point of the circuit in this time to transform the change of the speed of the car to the change of voltage by integration of this signal. Circuit where I introduce in this page detecting the speed of the car and the door is locked. In addition the various application is possible. Even 'Additional stop lamp control unit' that I am introducing in other page is controlling the flickering of the lamp by the speed of the car. The rating electric power of the resistors that are not designated is 1/8W. The resistance voltage of the electrolytic capacitors that are not designated is a 10V. Even it over is OK. The form becomes big. As for resistor R15, R26 and also R27, refer to the page of the "Adjustment of Car speed detection device", because adjustment may be necessary. There are the following things in the compatible kind of the voltage comparative device (uPC319). Because these things are same entirely even the pin arrangement the pattern drawing is possible use as it is. LM319 : National Semiconductor Corp. LM319 : Singnetics Corp. NJM319 : JRC ( Japanese company ) AN1319 : Natioanl ( Japanese company )
